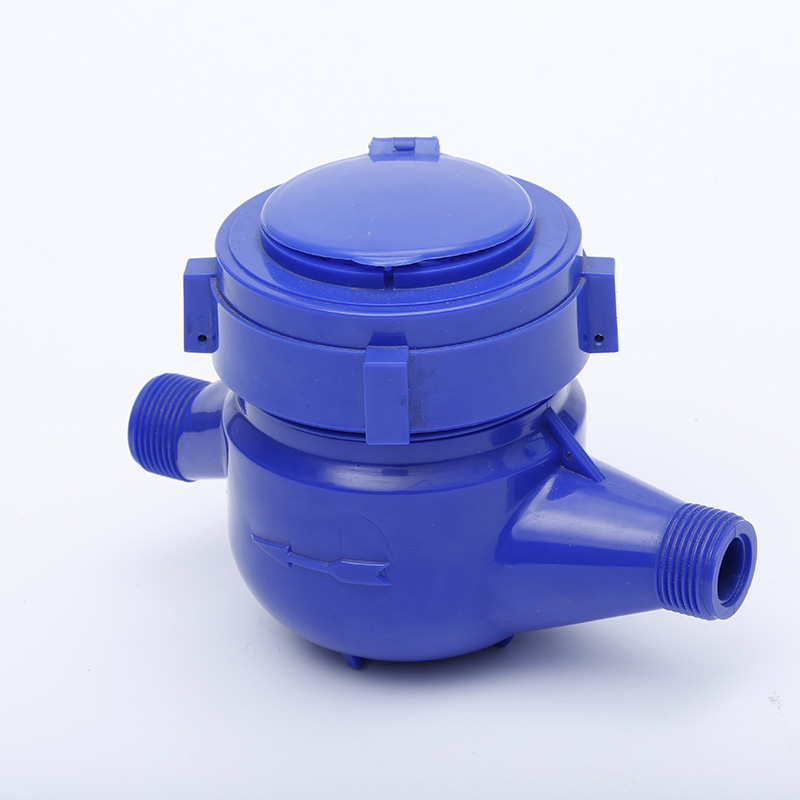

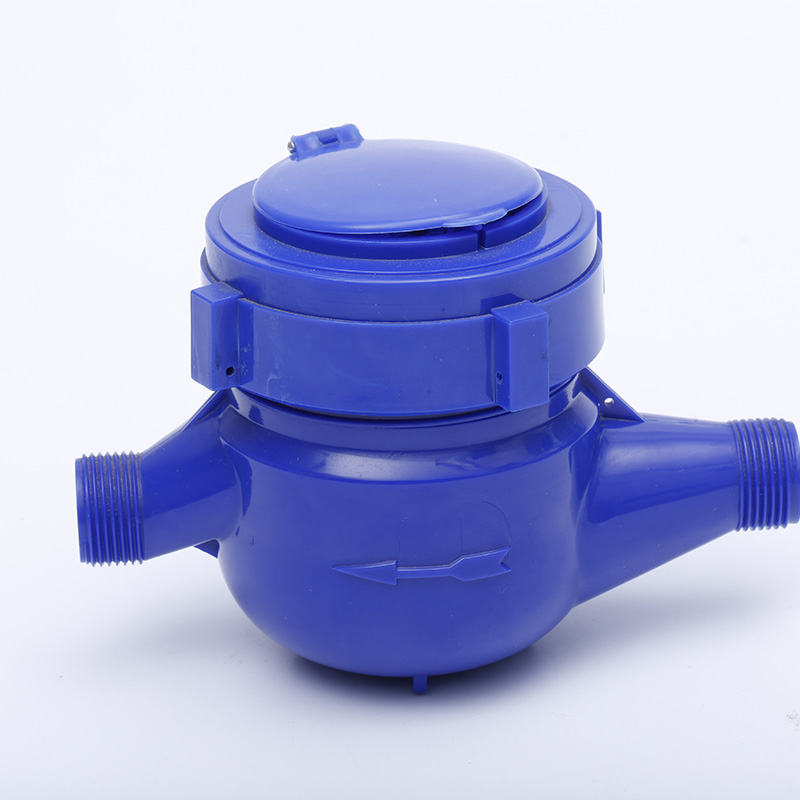

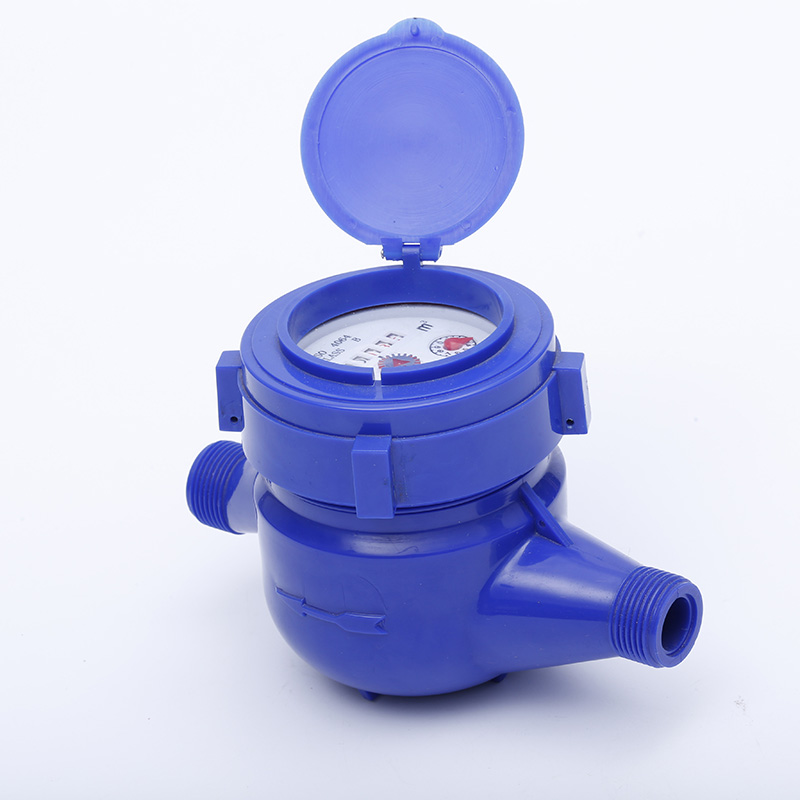

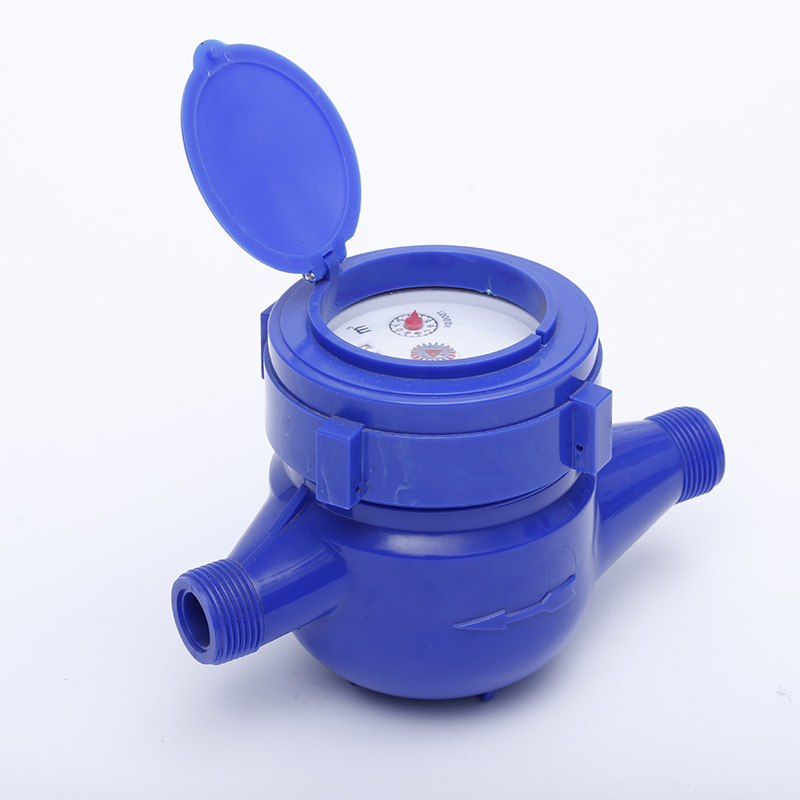

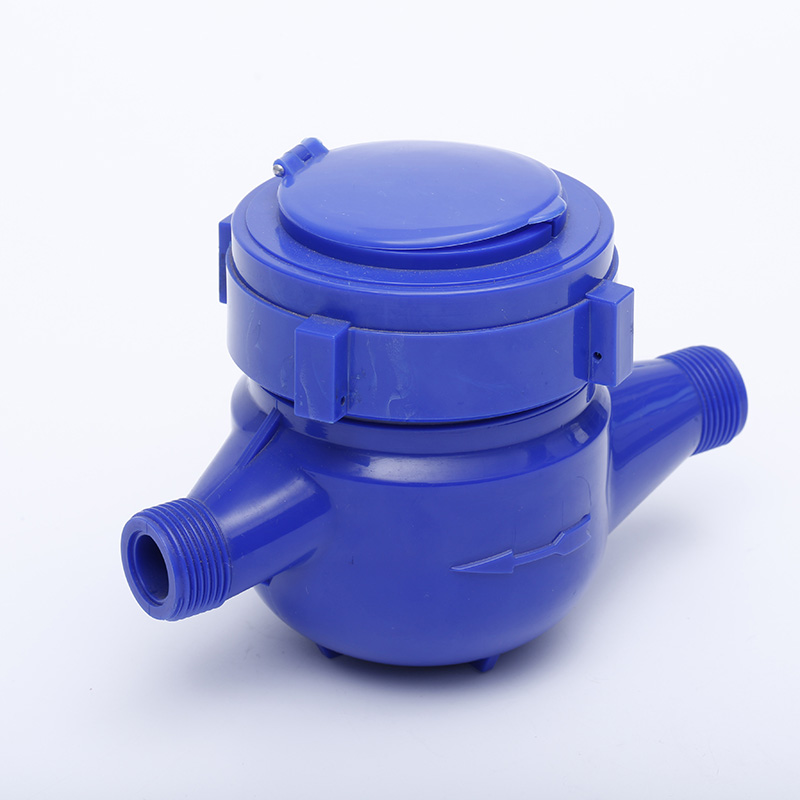

ABS Plastic Multi Jet Water Meter

Yongzhou Meter is a professional water meter factory in China , specilizing in manufacturing a wide range of water meter . Our ABS plastic multi jet water meter is produced according standard and supplied with competitive price to our customers. We look forward to building a stable business relationship with our customer and provide best service to meet the needs of our customers.

Model:LXSG-20P

Send Inquiry

Product Description

Yongzhou ABS plastic multi jet water meter is made with good quality with low price to meet the market , making them hight suitable for domestic use . Our majory products are multi jet water meter ,woltmann water meter and other water meter parts . OEM is also welcome .

Product feature

1.Type name:Multi-jet dry-dial ,Magnetic drive
2.Model No.: LXSG-15EP
3.Standard:ISO 4064 Class B
4.Material: ABS plastic
5.Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
6.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
Measuring accuracy conform to ISO4064 Class B standard

Installation requirements:

1.ABS plastic multi jet water meter should be installed in horizontal position with the register face upwards
2.Pipe line must be flushed before installation
3.The meter should be constantly full of water during operation

Main Technical data

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow	Qt Transitional Flow	Qmin Min Flow	Starting Flow	Min Reading	Max Reading
Meter Size DN (mm)	Class	m³/h		L/h			m³
15	B	3	1.5	120	30	14	0.0001	99999
20	B	5	2.5	200	50	16	0.0001	99999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ （For cold water meter）
Water pressure: ≤10bar （16bar on request）

Specifications:

Type	size	L	B	H	Connection thread
LSXG-15EP	15	165	102	115	G3/4B
LXSG-20EP	20	190	102	115	G1B

Minimum Order Quantity:	1000pcs
Price:
Packaging Details:	White box and carton
Delivery Time:	15-30days after receiving deposit
Payment Terms:	T/T , L C, West union,etc.
Supply Ability:	50000pcs/month
