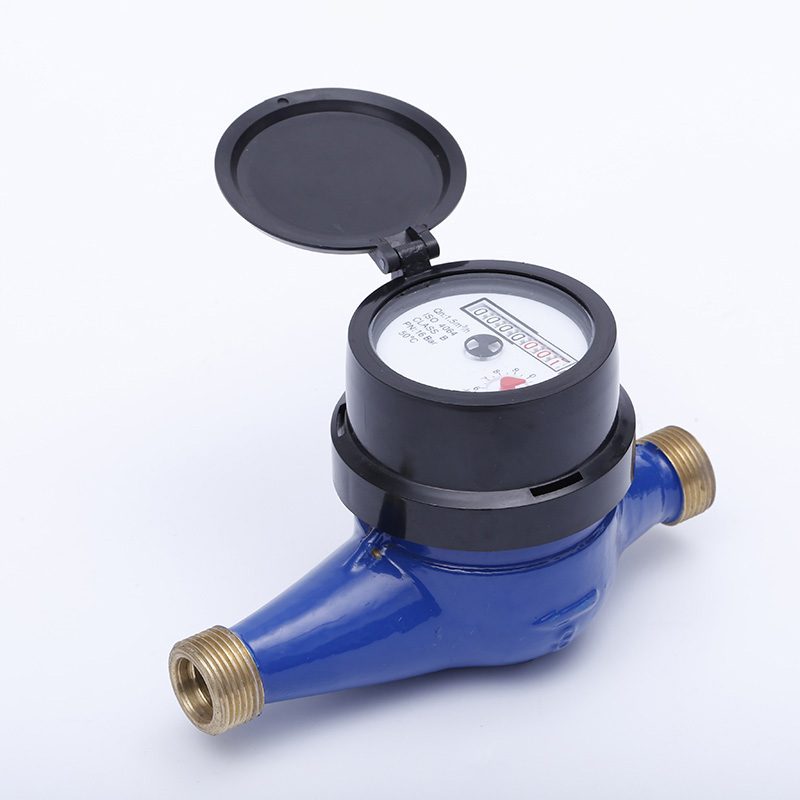

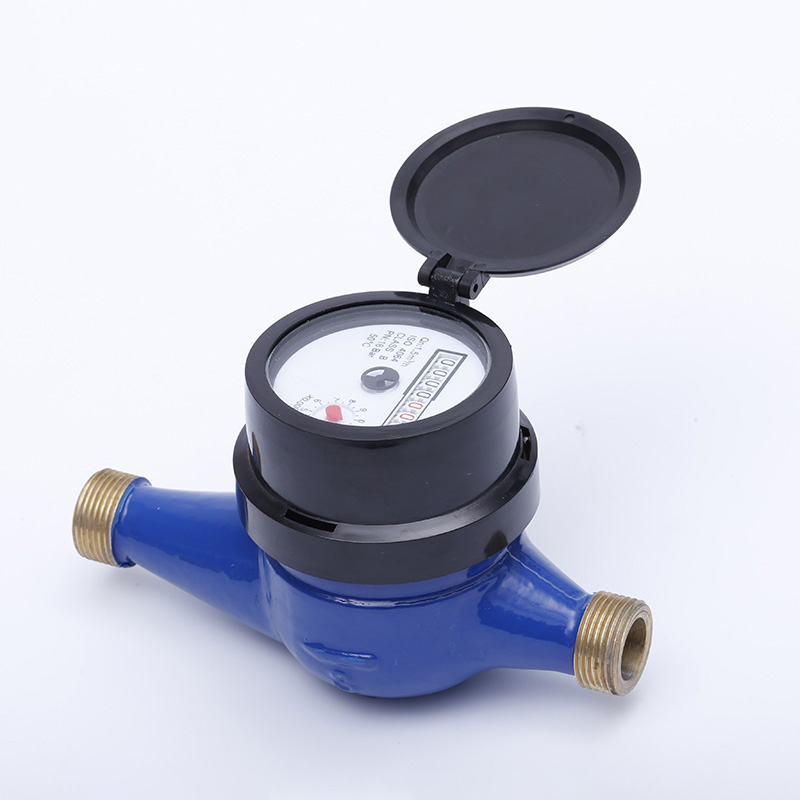

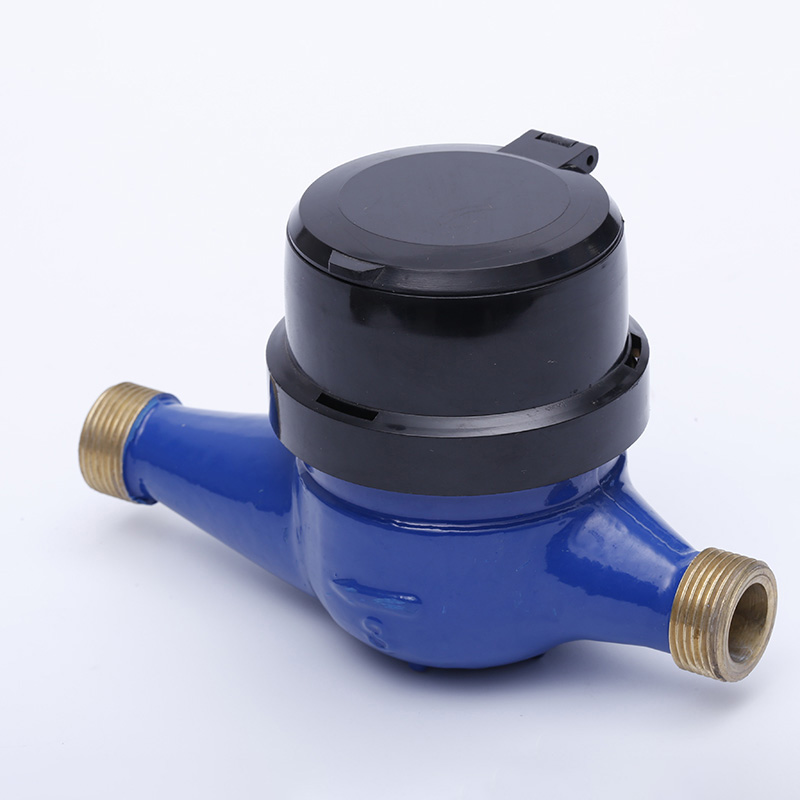

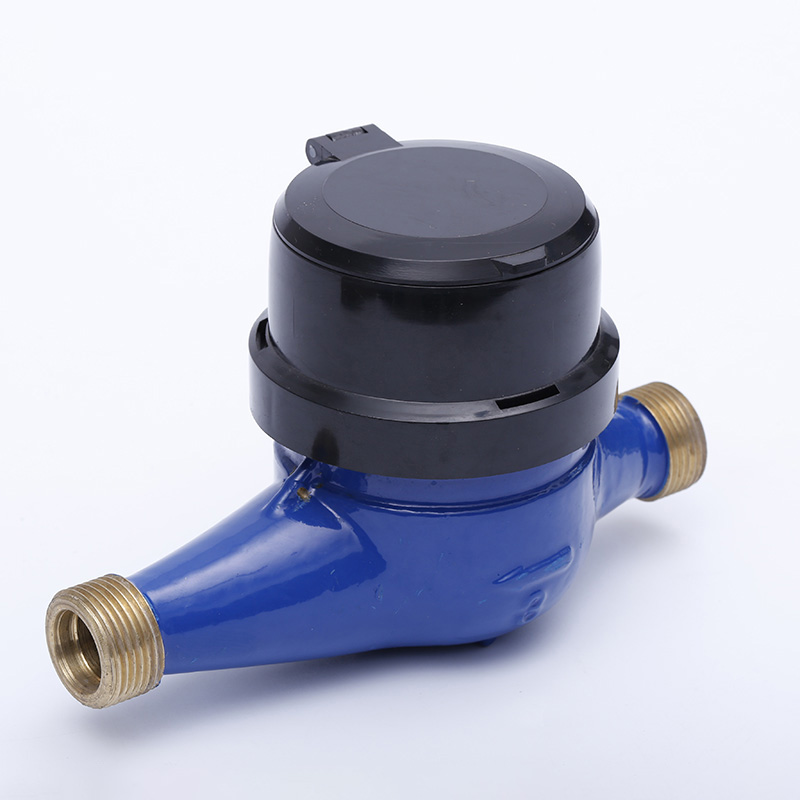

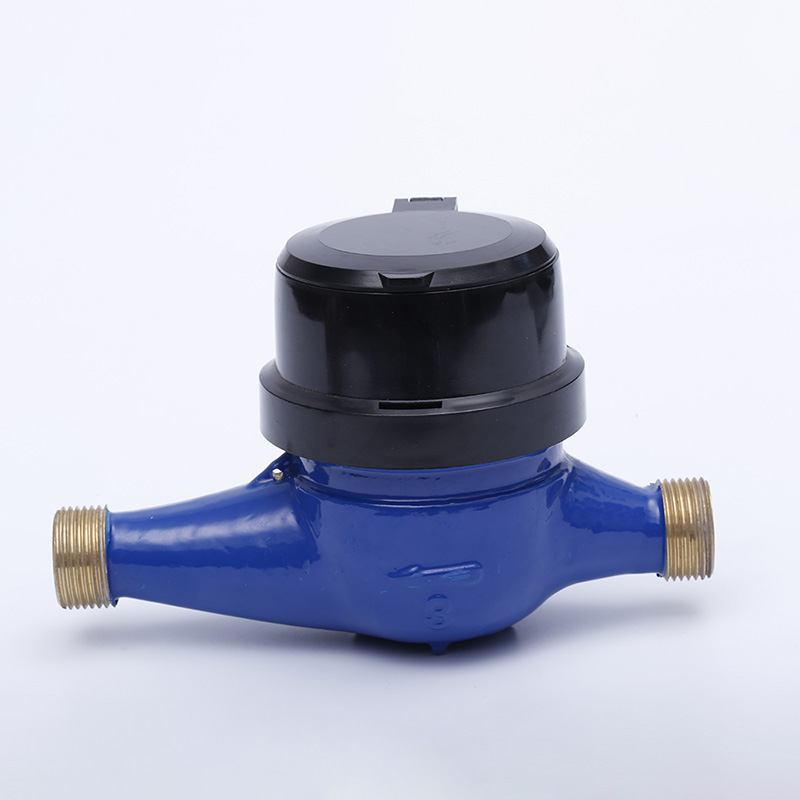

Brass Vane Multi Jet Cold Water Meter

Ningbo Yongzhou® Meter has been more than 20 years of experience in manufacturing multi jet water meter and water meter parts. We supply water meter with competitve price and good quality .We hope to build business relationship with you in mutual benefit . You can rest assured to buy brass vane multi jet cold water meter from our factory and we will offer you the best after-sale service and timely delivery.

Model:LXSG-15G

Send Inquiry

Product Description

Yongzhou® Meter Brass vane multi jet cold water meter is produced according to ISO4046 standard . It is designed for Indonesia market and is one of best selling water meters with guranteed qualtiy .

Product feature

1.Type name: Multi-jet dry-dial cold type
2.Model No.: LXSG-15G
3.Standard :ISO 4064 Class B
4.Material: Brass
5.Feature :Register can be turn around 360°
6.Anti-magnetic
7.Multi-jet ,Rotary vane wheel type
8.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
9.Measuring accuracy conform to ISO4064 Class B standard
10.One of best selling water meters in Indonesia
11.Customer’s brand could be printed as per request

Installation requirements

1.Meter should be installed in horizontal position with the register face upwards
2.Pipe line must be flushed before installation
3.The Brass Vane Multi Jet Cold Water Meter should be constantly full of water during operation

Main Technical data

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow	Qt Transitional Flow	Qmin Min Flow	Starting Flow	Min Reading	Max Reading
Meter Size DN (mm)	Class	m³/h		L/h			m³
15	B	3	1.5	120	30	14	0.0001	99999
20	B	5	2.5	200	50	16	0.0001	99999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ （For cold water meter）
Water pressure: ≤10bar （16bar on request）

Specifications:

Type	size	L	B	H	Connection thread
LSXG-15G	15	165	98	104	G3/4B

Competitive Advantage:

Reasonable price with good quality
Long time guarantee
100% tested
On time delivery

Information

Minimum Order Quantity:	1000pcs
Price:
Packaging Details:	White box and carton
Delivery Time:	15-30days after receiving deposit
Payment Terms:	T/T , L C, West union,etc.
Supply Ability:	50000pcs/month
