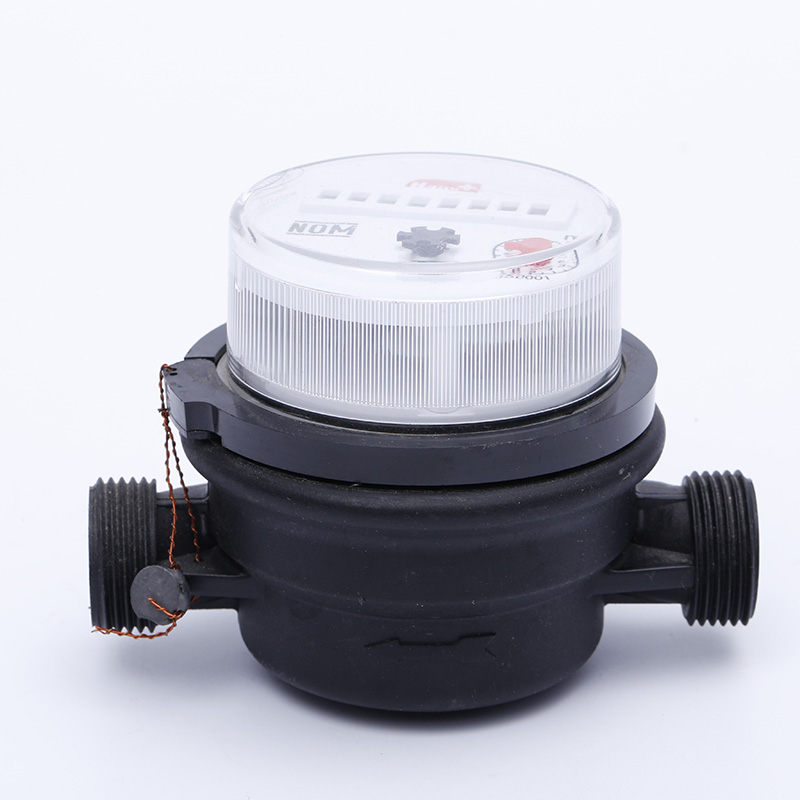

Plastic Single Jet Cold Water Meter

Ningbo Yongzhou Meter is renowned manufacturer of high-quality water meter and water meter parts in China . With 20 years of experience in the in dustry , we specalizing in producing a range of products , including multi jet water meter , plastic single jet cold water meter ,woltmann water meter and mechanism parts ,for commercial,industrial ,and residential application .

Model:LXSC-15P

Send Inquiry

Product Description


Yongzhou plastic single jet cold water meter is produced according to the IS4064 standard. Along side our single jet water meter , we also offer OEM servce to meet our customers market . We are expecting to cooperate with our customers and build long –time business relationship .

Product feature

1.Type name: Single-jet dry-dial type
2.Model No.: LXSC-15P
3.Standard :ISO 4064 Class B
4.Material: Plastic
5.Feature : Dry type, anti-magnetic
6.Cold water meter
7.Dry-dial, magnetic drive, Resistance to exterior magnet interference
8.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
10.Measuring accuracy conform to ISO 4064 class B Standard
11.Small in size and light in weight

Installation requirements:

1.Meter should be installed in horizontal position with the register face upwards
2.Pipe line must be flushed before installation
3.The meter should be constantly full of water during operation

Main Technical data

Meter Size  DN (mm) Class
Qs
Overload
Flow
Qp
Nominal
Flow
Qt
Transitional
Flow
Qmin
Min
Flow
Min
Reading
Max
Reading
m³/h L/h
15 A
3

1.5
150 60 0.0001 99999
B 120 30

Maximum permissible error:

At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs) (Hot water meter ±3%)

Working Condition:

Water temperature:0℃≤t≤50℃ (For cold water meter)
Water pressure: ≤10bar (16bar on request)

Specifications:

Type size L B H Connection thread Weight
LSXC-15P 15 80/110 80 80 G3/4B 0.3

Application:

This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.



Minimum Order Quantity: 1000pcs
Packaging Details: White box and carton
Delivery Time: 15-30days after receiving deposit
Payment Terms: T/T , L C, West union,etc.
Supply Ability: 50000pcs/month
