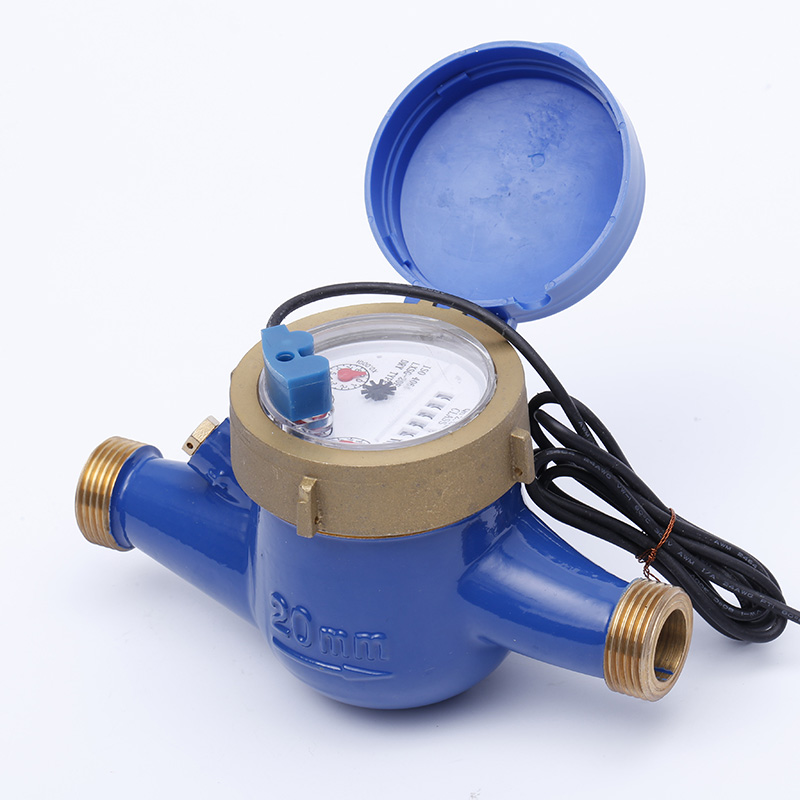

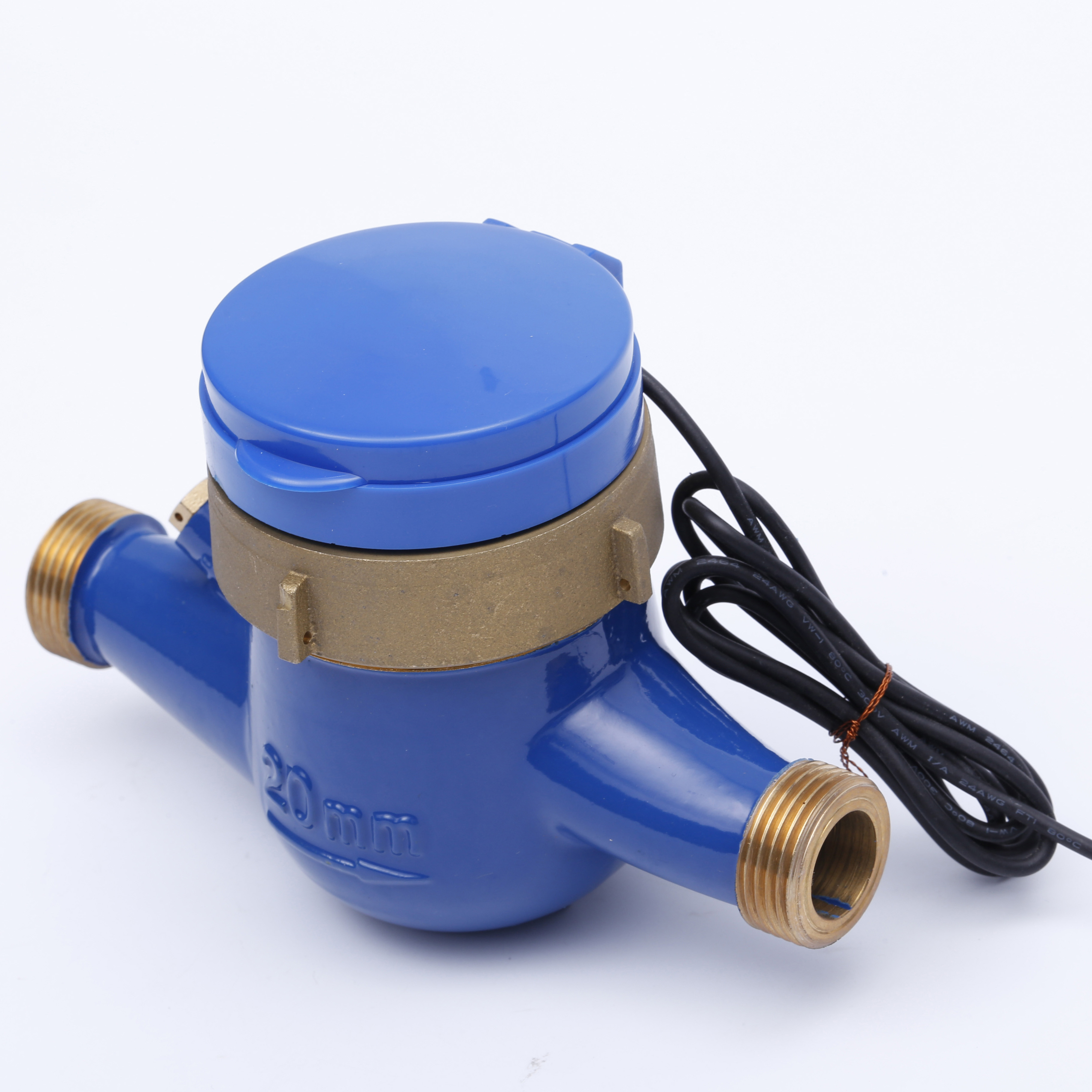

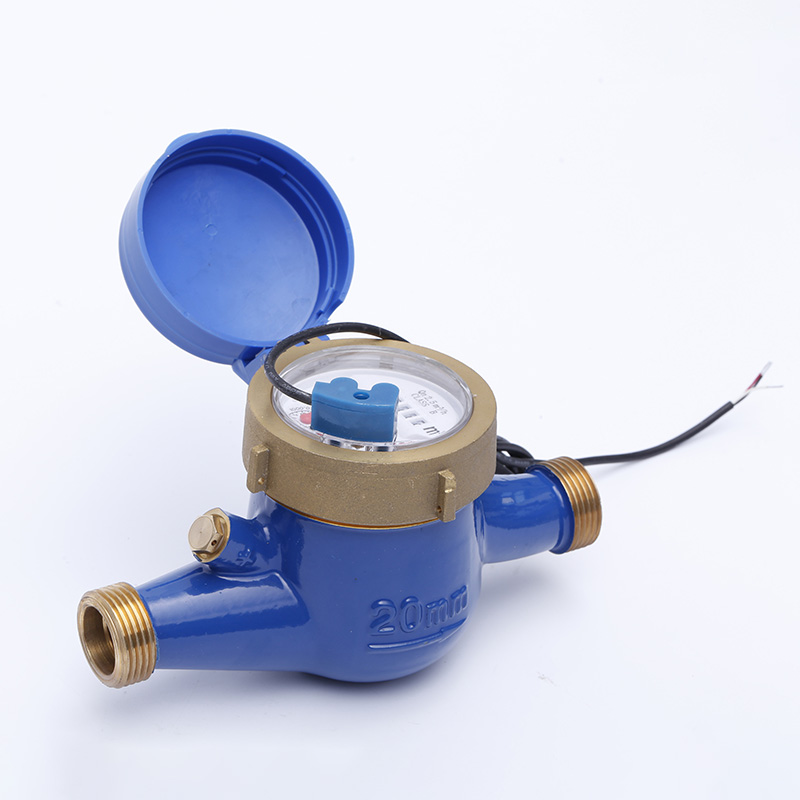

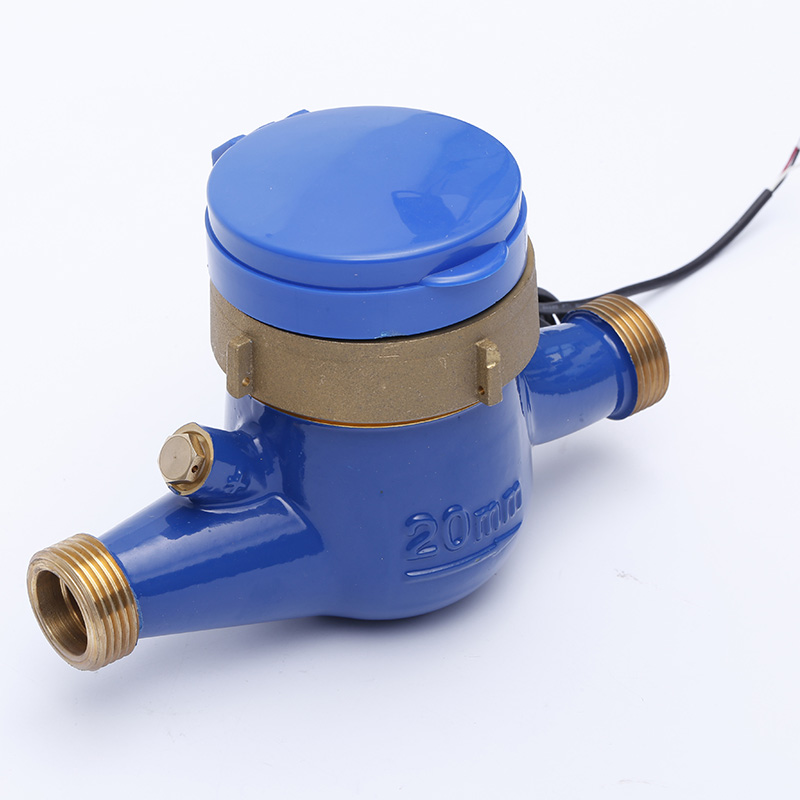

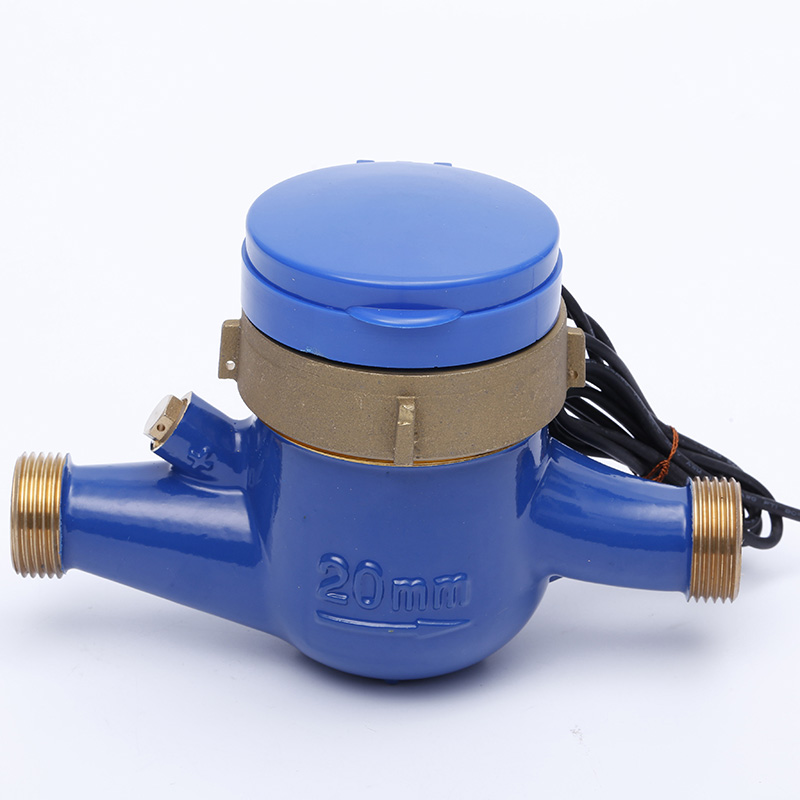

Sensor Brass Cold Water Meter

Ningbo Yongzhou Meter is a profession factory of producing water meters in China and has more than 20 years of experience in manufacturing sensor brass cold water meter, mutli jet water meter, woltman water meter and water meter parts. We can provide advantage price and after sell service. It is kindly hoped to build business relationship with you in mutual benefit .

Model:DN20

Send Inquiry

Product Description


Yongzhou sensor brass cold water meter is produced according to ISO4046 standard .The quality is guaranteed and each water meter is passed the testing. Also we can provide service of priting the required brand on the register after the brand is authorized .

Product feature

1.Type name: Multi-jet dry-dial with pulse output
2.Model No.: LXSG-20E2
3.Standard :ISO 4064 Class B
4.Material: Brass
5.Feature :Inlet strainer and return valve is for option
6.Remote reading device
7.Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
8.Material: Brass
9.Super dry type,brass shell,direct reading, external regulating device.
10.Magnetic drive, lower transmission resistance
11.Magnetic shield, for external magnetic field protection
12.Remote reading transmission system and anti-theft device , the pulse constant :10L/Pulse,100L/Pulse ,1000L.Pluse

Installation requirements:

1.Meter should be installed in horizontal position with the register face upwards
2.Pipe line must be flushed before installation
3.The meter should be constantly full of water during operation

Main Technical data

Meter Size  DN (mm) Class
Qs
Overload
Flow
Qp
Nominal
Flow
Qt
Transitional
Flow
Qmin
Min
Flow
Starting
Flow
Min
Reading
Max
Reading
m³/h L/h
15 B 3 1.5 120 30 14 0.0001 99999
20 B 5 2.5 200 50 16 0.0001 99999
25 B 7 3.5 280 70 19 0.0001 99999
32 B 12 6.0 480 120 25 0.0001 99999
40 B 20 10 800 200 56 0.0001 99999
50 B 30 15 3000 450 70 0.0001 99999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤40℃ (For cold water meter)
Water pressure: ≤10bar (16bar on request)

Minimum Order Quantity: 500pcs
Price:
Packaging Details: White box and carton
Delivery Time: 15-30days after receiving deposit
Payment Terms: T/T , L C, West union,etc.
Supply Ability: 50000pcs/month
