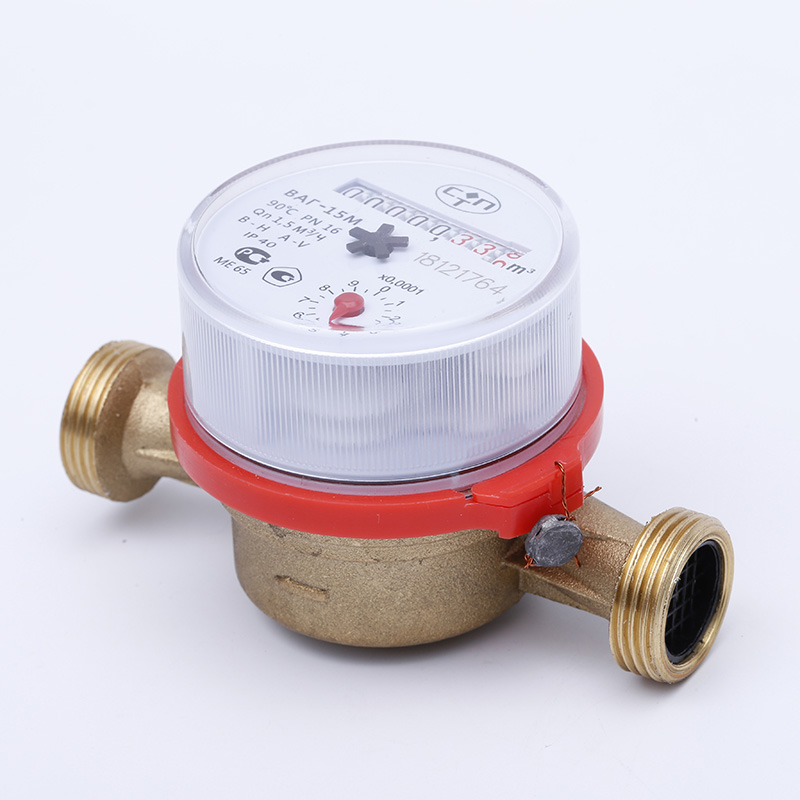

Yongzhou brass single jet cold water meter is manufactured with high quality according to production standard. Along side our single jet water meter , we also produce multi jet water meter ,woltmann water meter and mechanism water meter parts . We are expecting to cooperate with our customers and build long –time business relationship .
Product feature
1.Type name: Single-jet dry-dial type
2.Model No.: LXSC-15D
3.Standard :ISO 4064 Class B
4.Material: Brass
5.Feature : Dry type, anti-magnetic
6.Cold water meter or hot water meter for option
7.Dry-dial, magnetic drive, Resistance to exterior magnet interference
8.Selected high quality materials for steady&reliable characteristic
9.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
10.Measuring accuracy conform to ISO 4064 class B Standard
11.Small in size and light in weight
Main Technical data
|
Meter Size DN (mm)
|
Class
|
Qs
Overload
Flow
|
Qp
Nominal
Flow
|
Qt
Transitional
Flow
|
Qmin
Min
Flow
|
Min
Reading
|
Max
Reading
|
|
m³/h
|
L/h
|
m³
|
|
15
|
A
|
3
|
1.5
|
150
|
60
|
0.0001
|
99999
|
|
B
|
120
|
30
|
|
20
|
A
|
5
|
1.8
|
250
|
100
|
0.0001
|
99999
|
|
B
|
200
|
50
|
Maximum permissible error:
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs) (Hot water meter ±3%)
Working Condition:
Water temperature:0℃≤t≤50℃ （For cold water meter）
Water pressure: ≤10bar （16bar on request）
Specifications:
|
Type
|
size
|
L
|
B
|
H
|
Connection thread
|
Weight
|
|
LSXC-15D
|
15
|
110
|
73
|
88
|
G3/4B
|
0.70
|
|
LXSC-20D
|
20
|
130
|
73
|
88
|
G1B
|
0.80
|
Application:
This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.
|
Minimum Order Quantity:
|
1000pcs
|
|
Packaging Details:
|
White box and carton
|
|
Delivery Time:
|
15-30days after receiving deposit
|
|
Payment Terms:
|
T/T , L C, West union,etc.
|
|
Supply Ability:
|
50000pcs/month
|
