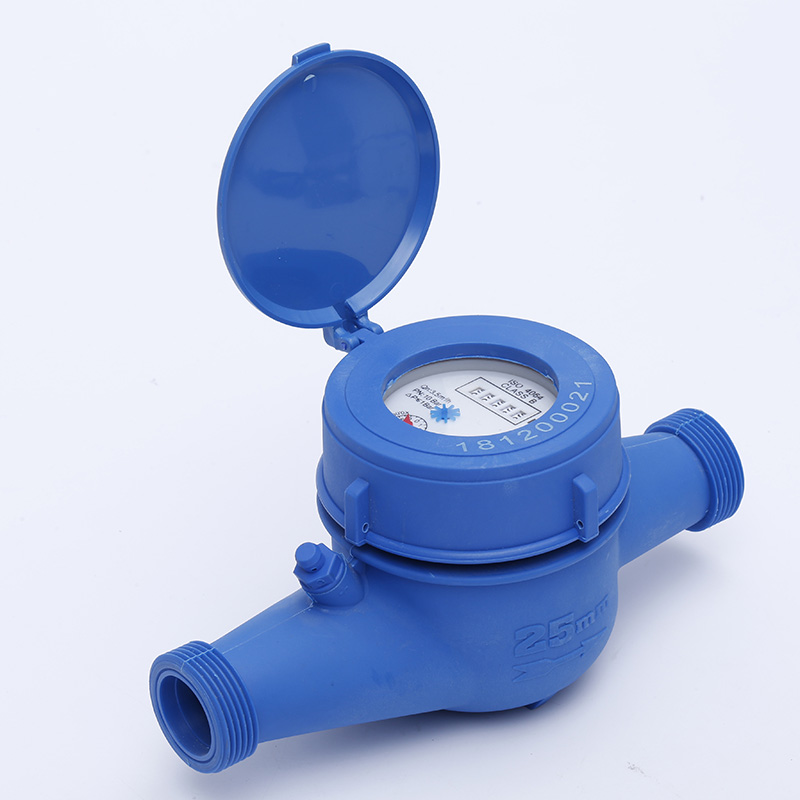

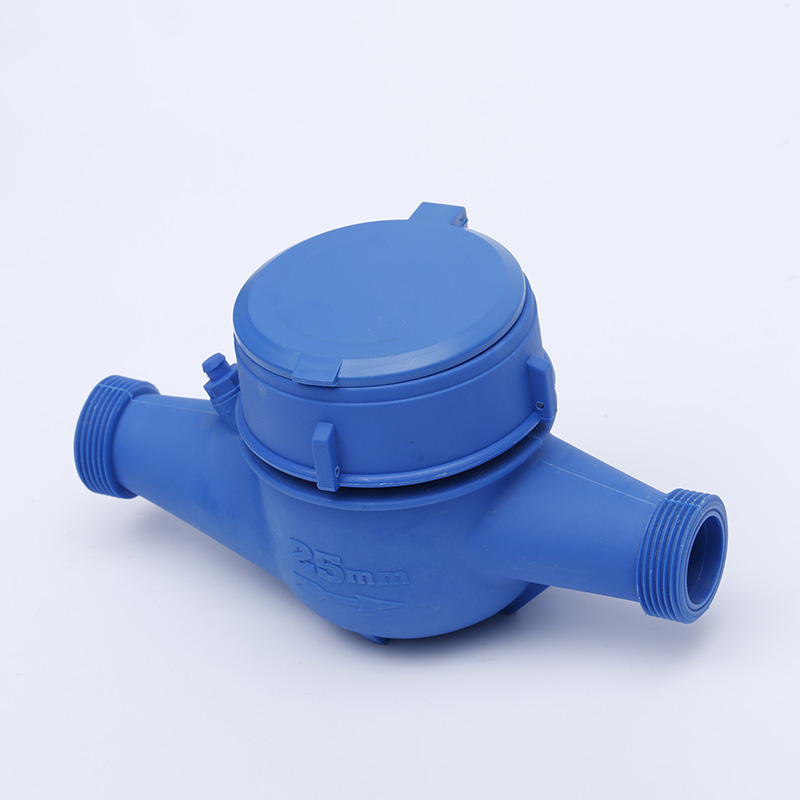

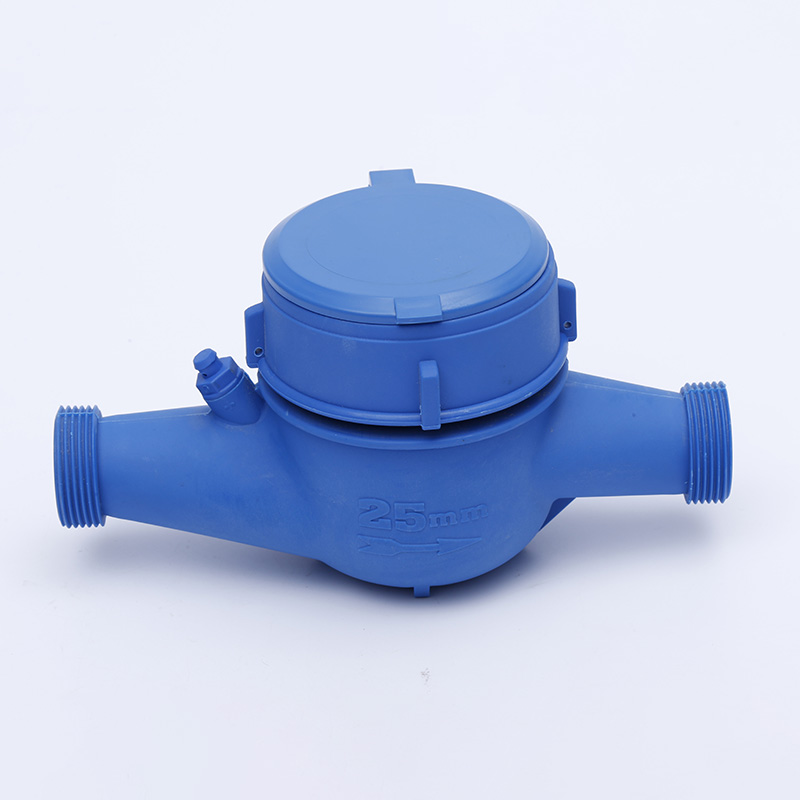

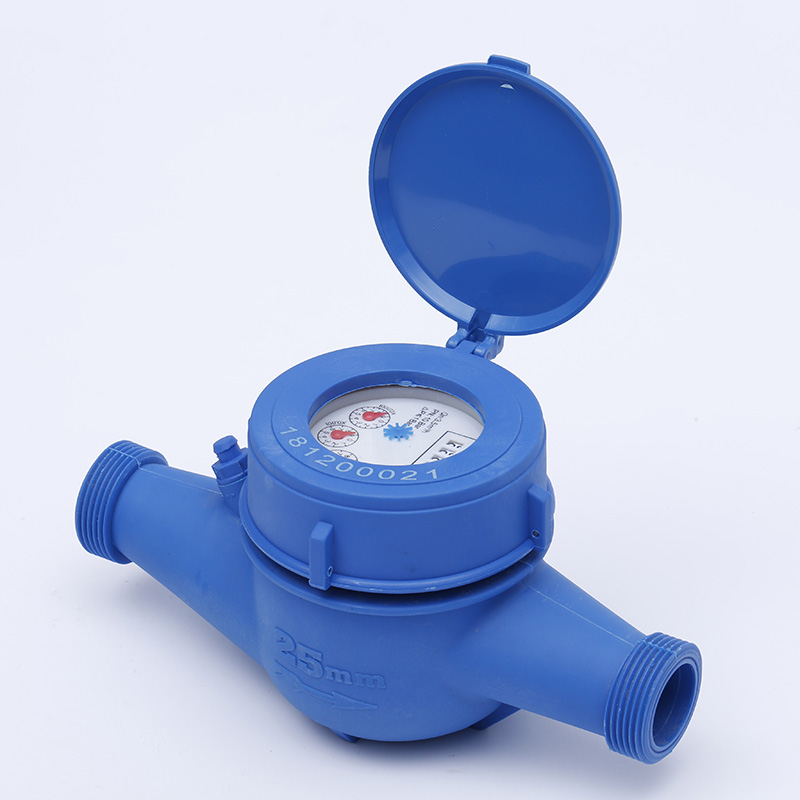

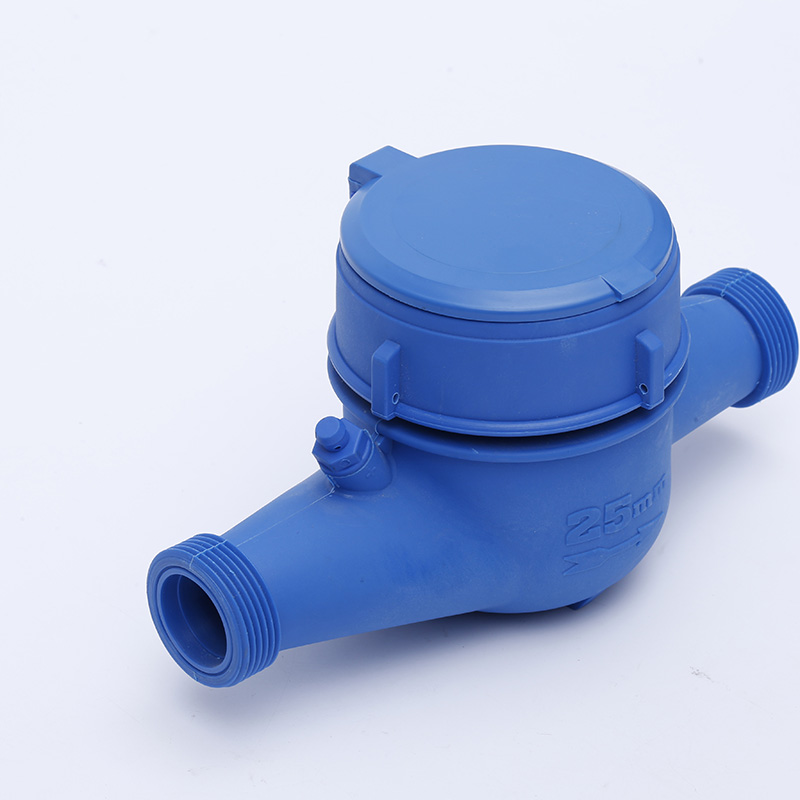

Multi Jet Dry Type Cold Water Meter

Ningbo Haishu Yongzhou Meters Co.,Ltd is forcus on delivering the high-quality mechanical water meters t our customers in China . We offer a diverse range of optiongs , including multi jet dry type cold water meter , woltmann water meter ,single jet water meter and water meter parts . Due to our comepetitive price and commtiment to quanlity , we are confident that our water meters meet the standards of the market . We value building stable partnerships with our clients.

Model:LXSG-25P

Send Inquiry

Product Description

Yongzhou multi jet dry type cold water meter is produced according to ISO4046 standard and featuring 5-year warranty . Also we are happy to offer OEM service to satisfy the market of our custmers . We are looking forward to hearing from your inquiry .

Product feature

1.Type name:Multi-jet dry-dial cold type
2.Model No.: LXSG-25P
3.Standard :ISO 4064 Class B
4.Material: Nylon
5.Color: Blue
6.5digits with 4 pointers
7.Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
8.Material: nylon
9.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
10.Measuring accuracy conform to ISO4064 Class B standard
11.Selected high quality & nontoxic plastic(Nano) materials for steady,reliable characteristic and good looking.

Installation requirements:

1.Meter should be installed in horizontal position with the register face upwards
2.Pipe line must be flushed before installation
3.The meter should be constantly full of water during operation

Working Condition:

Water temperature:0℃≤t≤50℃ （For cold water meter）
Water pressure: ≤10bar （16bar on request）

Main Technical data

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow		Qt Transitional Flow	Qmin Min Flow		Starting Flow		Min Reading	Max Reading
		m³/h			L/h					m³
15	B	3	1.5		120	30		14		0.0001	99999
20	B	5	2.5		200	50		16		0.0001	99999
25	B	7	3.5		280	70		19		0.0001	99999
32	B	12	6.0		480	120		25		0.0001	99999
40	B	20	10		800	200		56		0.0001	99999
50	B	30		15	3000		450		70	0.0001	99999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

Specifications:

Type	size	L	B	H	Connection thread
LSXG-15P	15	165	99	104	G3/4B
LXSG-20P	20	190/195	99	106	G1B
LXSG-25P	25	225/260	104	120	G1 1/4B
LXSG-32P	32	230/260	104	120	G1 1/2Ｂ
LXSG-40P	40	245/300	120	155	G2B
LXSG-50P	50	280/300	125	155	G2 1/2B

Minimum Order Quantity:	500pcs
Price:
Packaging Details:	White box and carton
Delivery Time:	15-30days after receiving deposit
Payment Terms:	T/T , L C, West union,etc.
Supply Ability:	50000pcs/month
