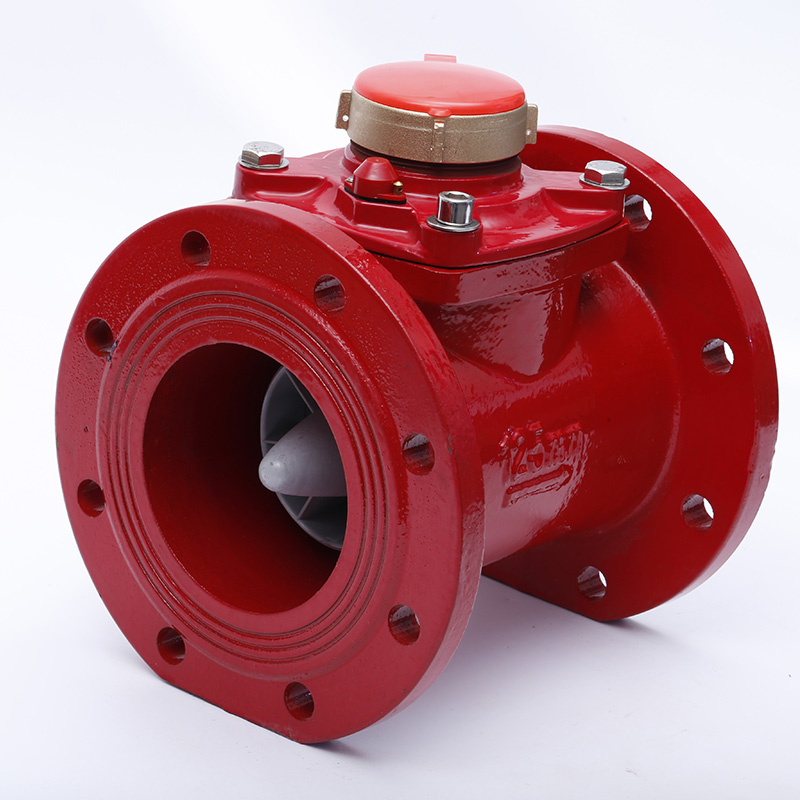

  • Horizontal Woltman Type Hot Water MeterHorizontal Woltman Type Hot Water Meter

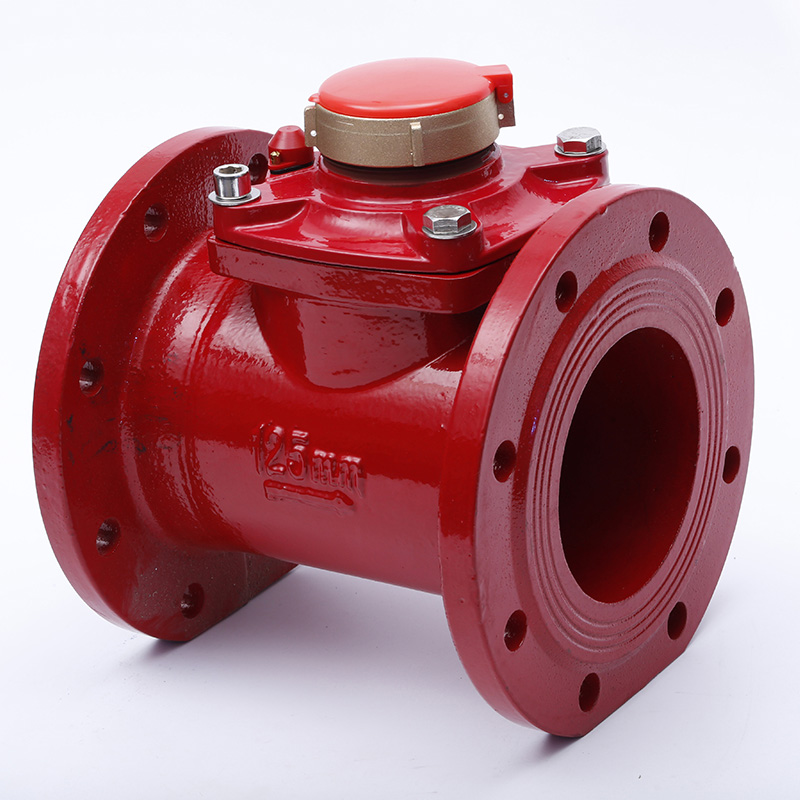

  • Horizontal Woltman Type Hot Water MeterHorizontal Woltman Type Hot Water Meter

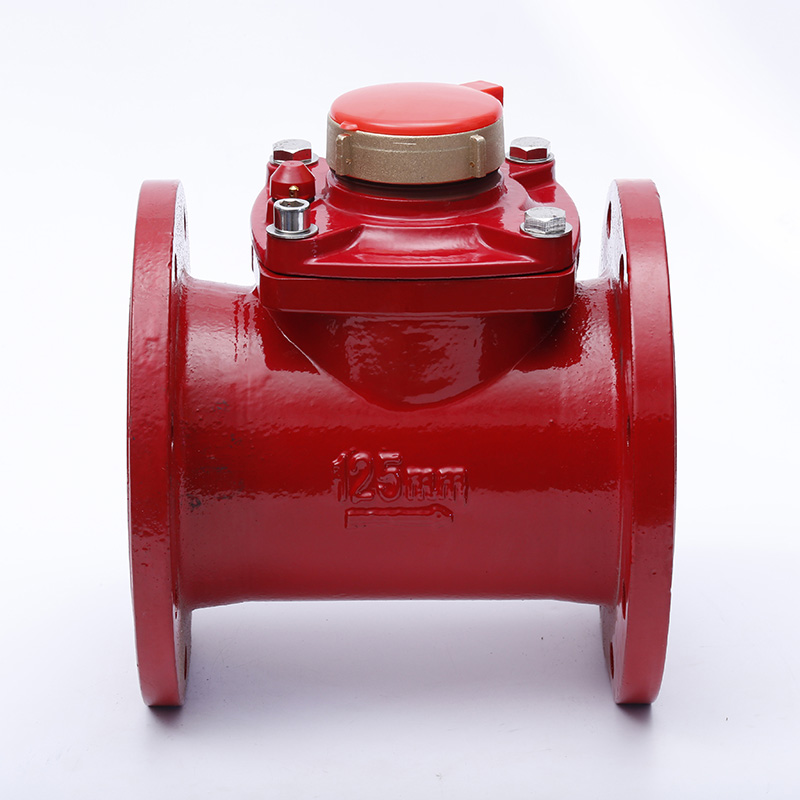

  • Horizontal Woltman Type Hot Water MeterHorizontal Woltman Type Hot Water Meter

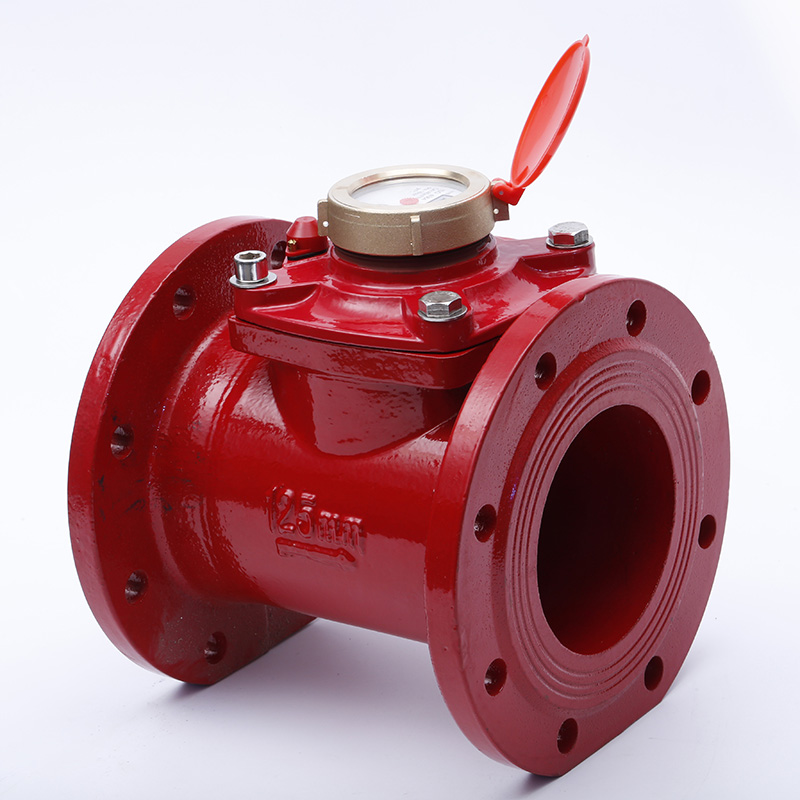

  • Horizontal Woltman Type Hot Water MeterHorizontal Woltman Type Hot Water Meter

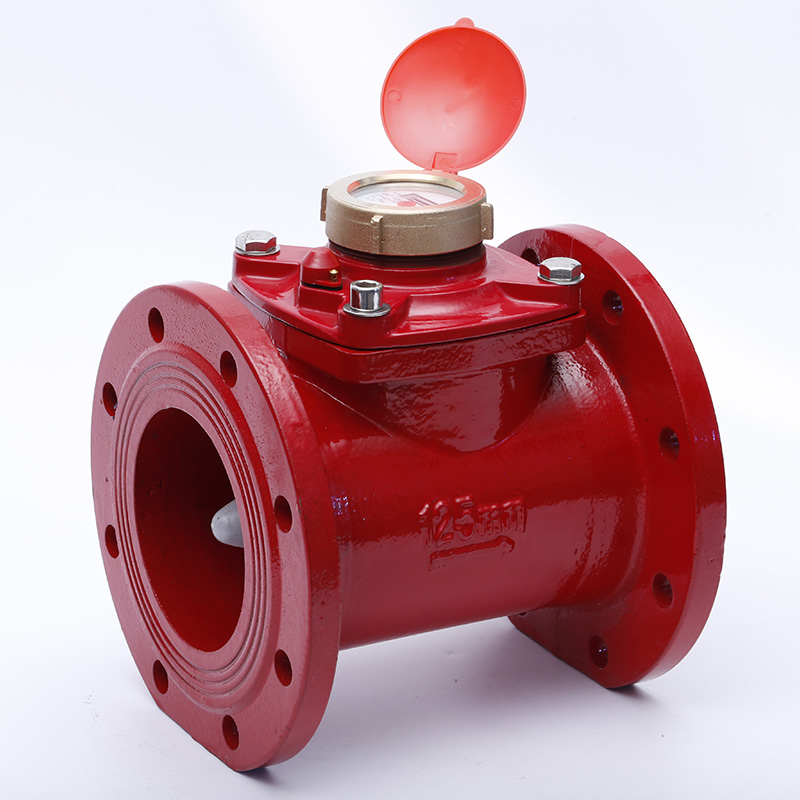

  • Horizontal Woltman Type Hot Water MeterHorizontal Woltman Type Hot Water Meter

Horizontal Woltman Type Hot Water Meter

Ningbo Haishu Yongzhou Meters Co.,Ltd is forcus on producing the high-quality water meters to our customers in China . Wth experience over 20 years, We are specializing in producing horizontal woltman type hot water meter,multi jet water meter and water meter parts . We offer high quality water meters with competitive price to meet the market . We look forward to building a long-term business relationship with customers.

Model:DN125

Send Inquiry

Product Description


Yongzhou horizontal woltman type hot water meter are manufactuerred according to the standard ISO4064, making them ideal for industrial usage. We are confident in the quality in the quality of our water meters ,which is backed up by 5-year warranty, ensuring customer satisfaction .

Product feature

1.Type name: Woltmann removable type for hot water
2.Model No.: LXLGR-125
3.Standard :ISO 4064 Class B
4.Material: Cast iron
5.Dry-dial,magnetic type
6.Horizontal installation
7.Selected high quality materials for steady and reliable characteristic ,low head loss and enable use a long life span
8.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term
9.Universal use with this range detachable,without removing the meter from the pipeline for a easy maintenance and replacement ,good looking,etc.
10.Measuring accuracy conform to ISO4064 Class B standard

Installation requirements:

1.Meter should be installed in horizontal position with the register face upwards
2.Pipe line must be flushed before installation
3.The meter should be constantly full of water during operation

Main Technical data

Meter Size  DN (mm) Class
Qs
Overload
Flow
Qp
Nominal
Flow
Qt
Transitional
Flow
Qmin
Min
Flow
Starting
Flow
Min
Reading
Max
Reading
m³/h L/h
50 B 30 15 3 0.45 150 0.01 9999999
65 B 50 25 5 0.75 170 0.01 9999999
80 B 80 40 8 1.2 280 0.01 9999999
100 B 120 60 12 1.8 400 0.01 9999999
125 B 200 100 20 3 800 0.01 9999999
150 B 300 150 30 4.5 1200 0.01 9999999
200 B 500 250 50 7.5 1500 0.01 9999999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤40℃ (For cold water meter)
Water pressure: ≤10bar (16bar on request)

Competitive Advantage:

Reasonable price with good quality
Long time guarantee
100% tested
On time delivery

Minimum Order Quantity: 50pcs
Price:
Packaging Details: Wooden box
Delivery Time: 15-30days after receiving deposit
Payment Terms: T/T , L C, West union,etc.
Supply Ability: 5000pcs/week
