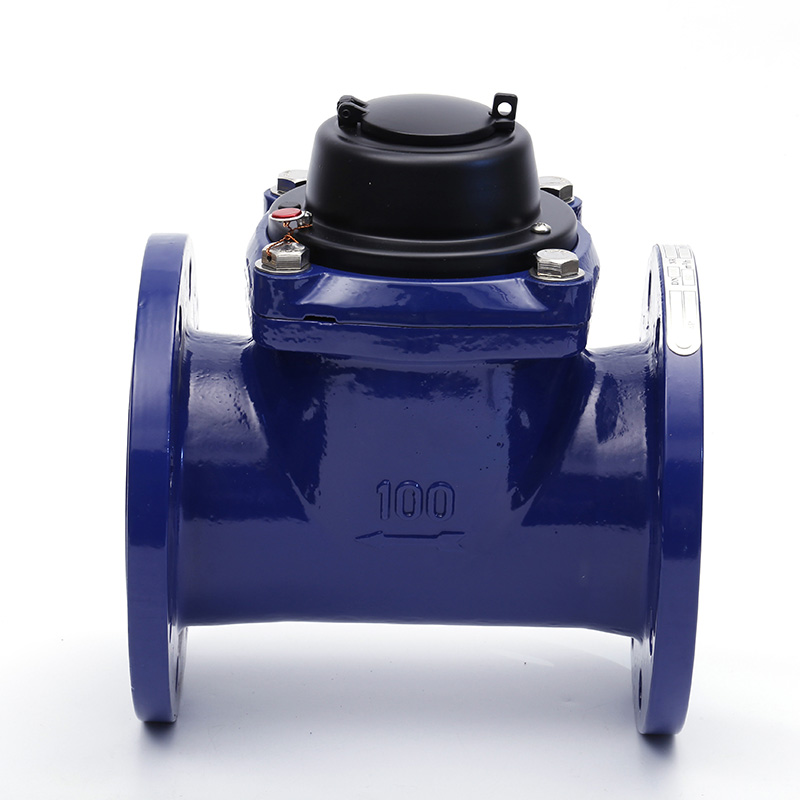

ISO 4064 Woltmann Industrial Water Meter

Ningbo Yongzhou Meters Co.,Ltd is a profession water meter manufacturer based in Vhina . We specialize in producing a diverse range of mechanical water meters ,incudling ISO 4064 woltmann industrial water meter ,multi jet water meter and water meter parts . We offer our customers a good balance between competitive price and high quality ,ensuring that we meet the needs of the market.

Model:LXLC-100

Send Inquiry

Product Description

Yongzhou woltmann industrial water meters are produced in accordance with standard 4064 and we stand by it quality with a 5-year warranty .We place a strong emphasis on building long-lasting business relationships with our clients in China

Product feature

1.Type name: Woltmann removable type
2.Model No.: LXLC-100
3.Standard :ISO 4064 Class B
4.Material: Cast iron
5.Dry-dial,magnetic type
6.Horizontal installation
7.Selected high quality materials for steady and reliable characteristic ,low head loss and enable use a long life span
8.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term
9.Universal use with this range detachable,without removing the meter from the pipeline for a easy maintenance and replacement ,good looking,etc.
10.Measuring accuracy conform to ISO4064 Class B standard

Installation requirements:

1.ISO 4064 Woltmann Industrial Water Meter should be installed in horizontal position with the register face upwards
2.Pipe line must be flushed before installation
3.The meter should be constantly full of water during operation

Main Technical data

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow		Qt Transitional Flow	Qmin Min Flow		Min Reading	Max Reading
Meter Size DN (mm)	Class	m³/h						m³
50	B	30	15		4.5	1.2		0.01	9999999
65	B	50	25		7.5	2		0.01	9999999
80	B	80	40		12	3.2		0.01	9999999
100	B	120	60		18	4.8		0.01	9999999
125	B	200	100		30	8		0.01	9999999
150	B	300		150	45		12	0.01	9999999
200	B	500		250	75		20	0.01	9999999
250	B	800		400	120		32	0.01	9999999
300	B	1200		600	180		48	0.01	9999999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤40℃ （For cold water meter）
Water pressure: ≤10bar （16bar on request）

Minimum Order Quantity:	10pcs
Price:
Packaging Details:	Wooden box
Delivery Time:	15-30days after receiving deposit
Payment Terms:	T/T , L C, West union,etc.
Supply Ability:	5000pcs/Month
