Product Description

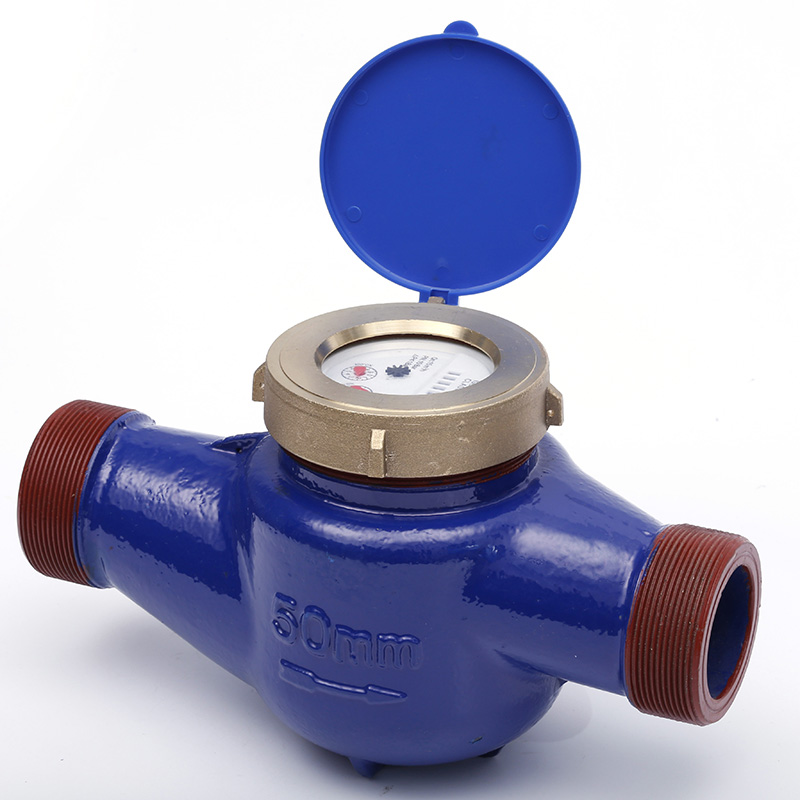

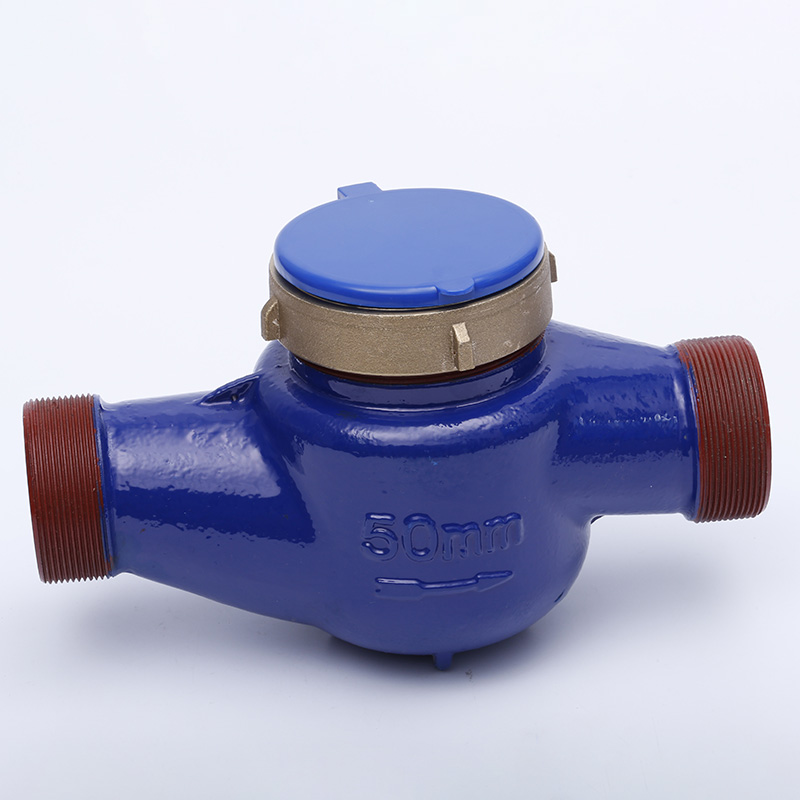

Yongzhou cast iron multi jet dry type cold water meters are produced to meet the ISO4064 standard ,making them highly suitable for houshold use . These high-quality water meters are designed to provide reliable performance for many years , and we offer a 5-year warranty and reliable after-sale sevices to support our customers to meet the market.

Product feature

1.Type name: Multi-jet dry-dial rotary vane wheel type
2.Model No.: LXSG-50E
3.Standard :ISO 4064 Class B
4.Material: Cast iron
5.Feature :Inlet strainer and return valve is for option
6．5 digits with 3 pointers
7. Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
8. Super dry type ,direct reading, external regulating device.
9. Magnetic drive, lower transmission resistance
10.Magnetic shield, for external magnetic field protection
11.Measuring accuracy is up to ISO4064, Class B for horizontal installation
12.Available with reed switch pulse output on request.

Main Technical data

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow		Qt Transitional Flow	Qmin Min Flow		Starting Flow		Min Reading	Max Reading
		m³/h			L/h					m³
15	B	3	1.5		120	30		14		0.0001	99999
20	B	5	2.5		200	50		16		0.0001	99999
25	B	7	3.5		280	70		19		0.0001	99999
32	B	12	6.0		480	120		25		0.0001	99999
40	B	20	10		800	200		56		0.0001	99999
50	B	30		15	3000		450		70	0.0001	99999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ （For cold water meter）
Water pressure: ≤10bar （16bar on request）

Specifications:

Type	size	L	B	H	Connection thread
LSXG-15E	15	165	98	104	G3/4B
LXSG-20E	20	190/195	98	108	G1B
LXSG-25E	25	260/225	103	115	G1 1/4B
LXSG-32E	32	260/230	103	115	G1 1/2B
LXSG-40E	40	300/245	124	153	G2B
LXSG-50E	50	300	124	153	G2 1/2B

Installation requirements:

1.Meter should be installed in horizontal position with the register face upwards
2.Pipe line must be flushed before installation
3.The meter should be constantly full of water during operation

Competitive Advantage:

Reasonable price with good quality
Long time guarantee
100% tested
On time delivery

Information :

Minimum Order Quantity:	10pcs
Price:
Packaging Details:	White box and carton
Delivery Time:	15-30days after receiving deposit
Payment Terms:	T/T , L C, West union,etc.
Supply Ability:	50000pcs/month
